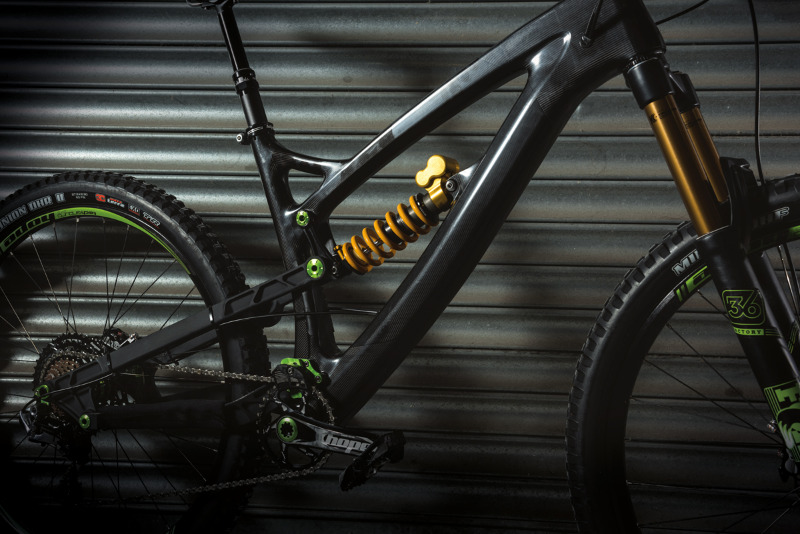

Hope Technology have been recently teasing us with some spy shots of a potential full carbon bike. Well say hello to the Hope Technology HB 211 Carbon Bike!

Concept

So why make a bike? This has been a dream of Simon and Ian, Hopes co­-founders and owners for many years. It’s never been about the idea of becoming a bike brand, but rather just to have the satisfaction of producing a complete bike. Initial ideas were for a welded steel frame, but as technology moved on over the years, so their ideas moved to carbon.

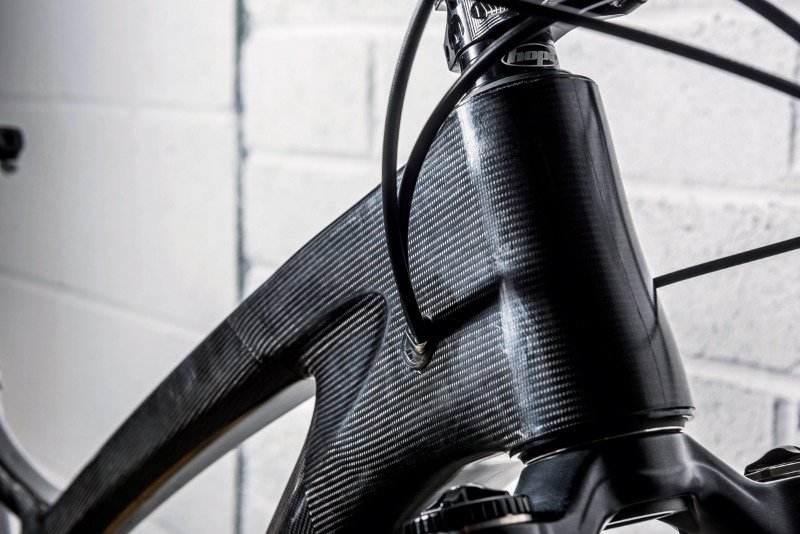

UK Carbon Production

There’s a wealth of knowledge around carbon fibre in the UK, with the majority of the current F1 teams being based here as well as a thriving aerospace industry. This gives us access to some of the worlds most talented carbon fibre engineers, right on our doorstep. The challenge was taking their skill at producing batches of two components, and scaling it up to production quantities.

Since our existing products are manufactured using the processes most companies only use to produce their first prototypes ie CNC machined rather than cast or precision forged, it’s not been an unusual experience for us.

Mould production has been one of the easiest processes since these are made on CNC machines and we already have a few of these.

Cutting and laying up the carbon sheet is quite a labour intensive process, but keeping production on site in Barnoldswick gives us total confidence in the quality of parts we can produce.

In the past there have been reservations internally about the safety of manufacturing in carbon fibre and although carbon fibre production is a new process to us, with the correct controls and working practices put in place, it can be made an extremely safe process. Also by manufacturing in our own factory in the UK to strict health and safety regulations, we can ensure a safe working environment for our staff, which is more than can be said for some companies who have parts produced in anonymous factories around the world.

Optimised Integration

Although we didn’t really want to create new standards on this project we felt it was important as we have seen compromises bike manufacturers have made when designing frames and also the restrictions on component manufacturers to conform to standards. Very few companies have previously been able to combine the needs of the frame and component designer into one project.With this unique opportunity,we set about creating the perfect bike-­? without compromise. Our bike designs have gone through a big evolution over the years, changing as our current bike requirements have changed.

We started back in 2005 with a downhill bike, but this design progressed through many different disciplines and have finally settled on our current ride – 160mm travel All Mountain/Trail/Enduro style bike.

This bike uses very few current standards since it has been developed as a design concept rather than a product design exercise. Maybe not the best solution for compatibility, but when you make every part, it gives you the opportunity manufacture a bike without compromise.

Rear hub:

We produced a specifically spaced rear end to achieve a dishless wheel build. We moved the drive-side chainstay out and increased the chainline to give more clearance around the bottom bracket (this was pre boost, but realistically has achieved the same thing). Additionally we brought the non-driveside chainstay in to create a narrower rear end and brought the rotor/caliper as close as possible to the spokes. The hub is fitted with a 17mm axle and 25mm location for maximum stiffness.

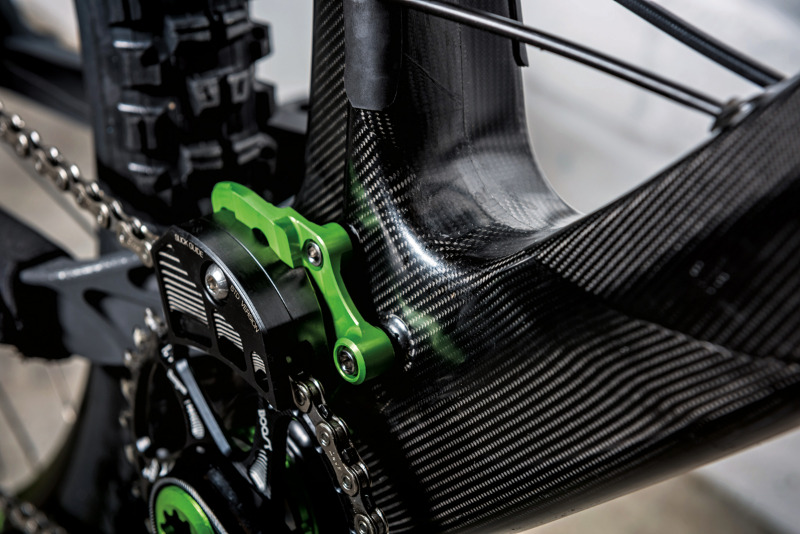

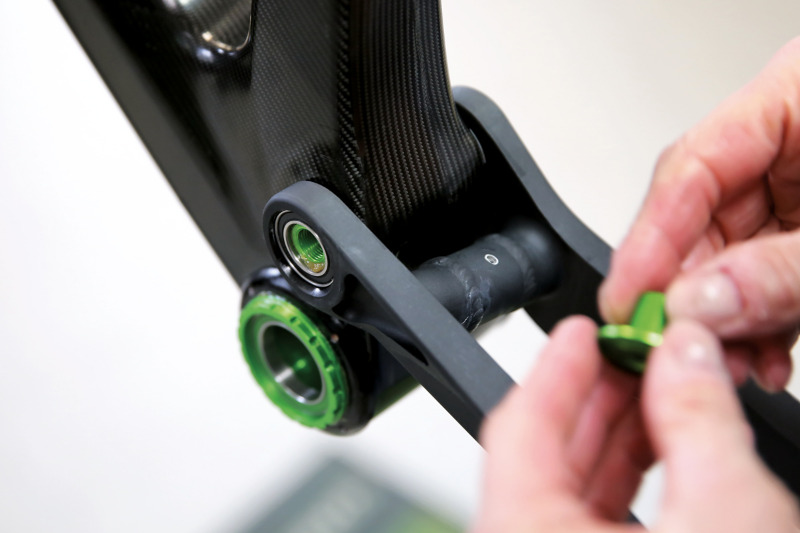

Bottom bracket:

Designed around 30mm as standard so no compromise. Since one designer worked on the frame, bottom bracket and the cranks a perfect solution was found to give long bearing life as well as frame/pivot stiffness.

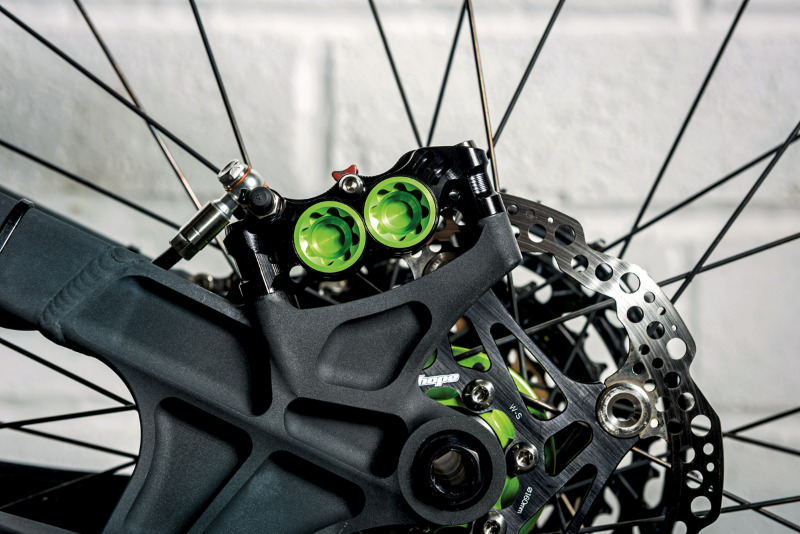

Rear brake:

Radially mounted brake which only needs simple spacers to change disc size. This makes for simple disc size changes as opposed to the current of post mount as our brake designer comments “It is really frustrating to model things perfectly on the screen, have CNC machines capable to hold very tight tolerances to then fit a caliper and some randomly dimensioned brake mount. When you go away from the std 160 postmount dimension depending what manufacturer spec you go for, the caliper would end up in a different position and not be aligned as it should be. Off course it is not stopping the brake working but somehow looks like a bodge !”

Suspension:

4 bar linkage optimised for the bikes intended use, a fairly aggressive riding style and pedalling efficiency.

Availability

This project was started as a design exercise, rather than a commercial project. We never considered if it would be profitable to make our own bike in the UK. But maybe it will be – Watch this space.
