Introducing the Intense M16 Carbon Expert Edition
16 March 2016 | By billy1979Introducing the Expert Edition M16 Carbon Downhill Bike. Built with a carefully chosen spec to deliver the performance of a legendary M bike at an unprecedented value. The Expert Edition features the same geometry as the Factory and Pro models, a carbon fiber monocoque mainframe, 157 x 12mm rear wheel spacing and is carefully spec'd with the best parts and accessories available in the targeting price range.
Standard Carbon Front & Rear Triangles. Monocoque UD Carbon Construction
Front Suspension: Fox Performance Elite 40 Float, 27.5", 20mm
Rear Suspension: Fox Performance Elite DHX2, 214-240mm Travel

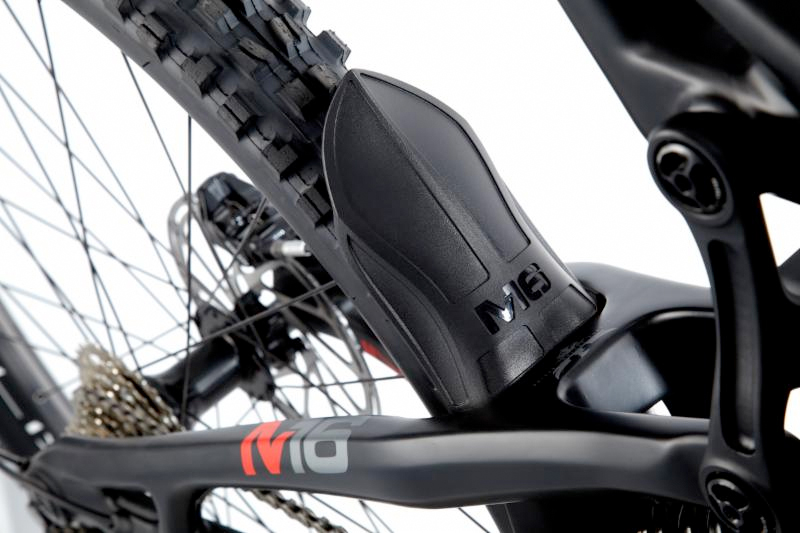

Custom Carbon Protectives at bottom bracket and chain stays, Mud Guard.
| Spec | |
|---|---|
| Frame: | M16 275 Monocoque UD Carbon Front and Rear Triangle 275" DH Frameset, ISCG 05 Mount, w/ 157 x12 mm spacing, 215 -240 mm travel |
| Front suspension: | FOX Performance Elite 40 FLOAT, 27.5", 200 MM |
| Rear suspension: | FOX Performance Elite COIL DHX2 |
| Upgrades: | n/a |
| Wheels: | Custom Build |
| Hubs: |
32 Hole Intense Tuned, 148x 12 mm BOOST; 110 x 20mm Front Hub; 157 x 12mm Rear Hub Shimano Driver, 6-Bolt
|
| Rims: | Sun Helix TR29 Rims, 275", Tubeless Ready |
| Spokes: | DT Swiss Champion |
| Tires: | Maxxis Minion, 27.5 X 2.5" |
| Shifters: | Shimano Zee, 10 speed |
| Rear derailleur: | Shimano Zee, 10 speed |
| Front derailleur: | n/a |
| Crank: | Shimano Zee |
| Cassette: | Shimano CS-HG50-10, 11-36T, 10 speed |
| Chain: | KMC 10 speed |
| Chain Guide: | E13 LG1 |
| Saddle: | WTB Volt Sport |
| Seatpost: | Intense Recon, 300 x 31.6mm |
| Handlebar: | Renthal Fatbar Lite DH 20mm x 780 mm |
| stem | Renthal INTEGRA II Direct Mount 45MM |
| Headset: | Cane Creek, 40, alloy cartridge, 25 mm of spacers |
| Brakeset: | Shimano Zee, 203 mm front and rear |
| Grips: | Intense Dual Density Lock-On |
More information: www.intensecycles.com
