Easton release new range of 35mm diameter Havoc bar and stems
20 April 2012 | By gregberryEaston have just released their new range 35mm Havoc bars and stems! Using a wider bar/clamp diameter this allows the bars to be lighter, stiffer and stronger than anything else on the market.
Using that new 35mm diameter, these carbon Havoc's look like they can take a beating!
Easton Havoc 35 Carbon Bar:
We took the industry-leading Havoc Carbon handlebar—the strongest handlebar on the market—and made it stronger. And lighter. And stiffer. And did we mention the new Havoc 35 Carbon is also 50-millimeters wider? We achieved this by borrowing from Easton’s motocross handlebar technology and upgrading the bar/stem clamp diameter to 35-millimeters. This new system makes such a dramatic difference in strength and steering precision that after one run, you’ll never want to ride another downhill bar.
| Finish: | Matte UD Carbon |
| Bar Weight: | 225 grams |
| Degree Bend: | 9D, 5D Upsweep, 20mm rise |
| Clamp diameter: | 35mm |
| Material: | Easton EC 90 Carbon |
I already have a set of these in the normal 31.8 diameter and I love them! Can't wait to try these though!

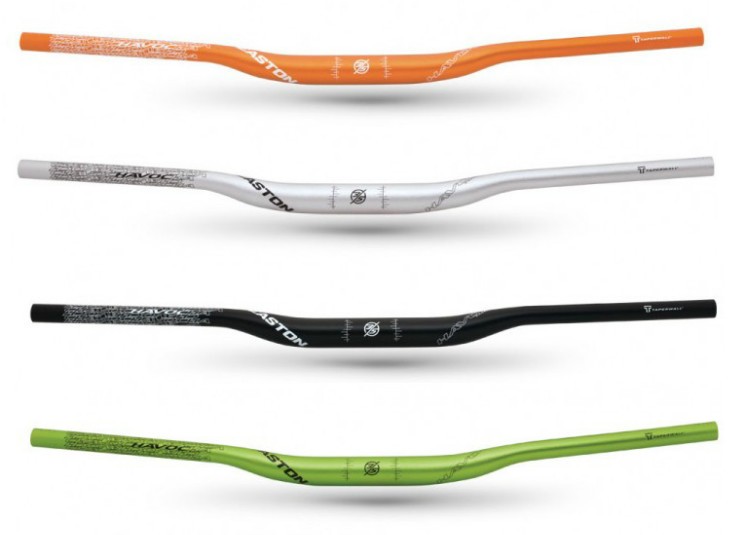

Easton Havoc 35 Aluminium Bar:
By this point most performance downhillers understand the virtues of wide handlebars (increased stability, more control and less fatigue). But they often trade strength and stiffness for the increase in width. With the Havoc 35 series handlebars, riders no longer need to compromise. The Havoc 35 Aluminum handlebar is a full 800 millimeters wide and is second only to its carbon counterpart in terms of strength and stiffness. And thanks in part to EA90 aluminum, TaperWall™ butting, and Easton’s legendary cold-working process, the Havoc 35 Aluminum is among the lightest aluminum DH bars on the market. The Havoc 35 Aluminum handlebar is available in four colors: black, silver, orange or green.
| Finish: | Black, Orange, Silver or Green |
| Bar Weight: | 300 grams |
| Degree Bend: | 9D, 5D Upsweep, 20mm rise |
| Clamp diameter: | 35mm |
| Material: | Easton EA90 Alloy |
The fatter new stem looks like a great system. With the Top Lock Technology, that helps distribute the stress of the bars clamped to the stem better.

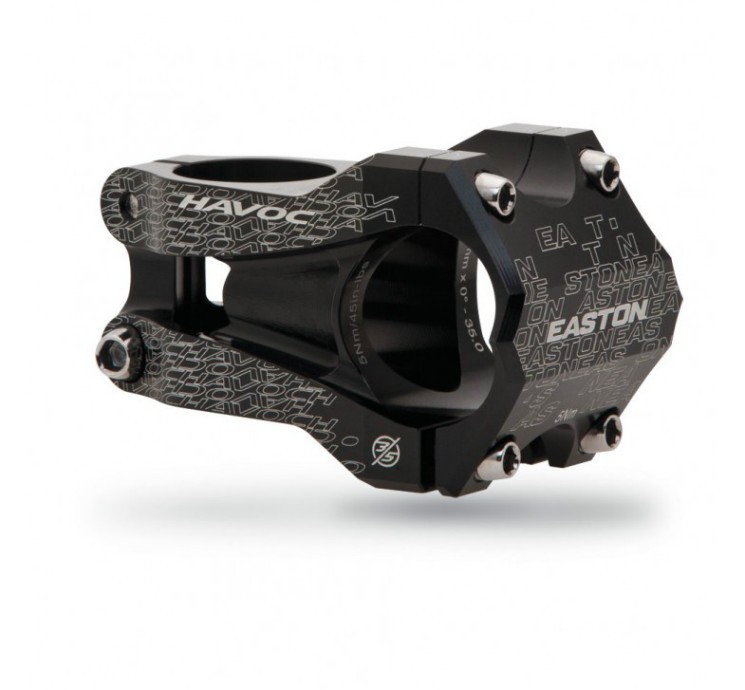

Easton Havoc 35 Stem:
Just when you thought a stem couldn’t get any more burly and beautiful than the Havoc, we made it bigger and badder by increasing the handlebar clamp diameter to 35-millimeters. The increased clamp diameter alone offers more strength, stiffness and security than conventional 31.8 options, plus the Havoc 35 stem is a prime example of Easton’s engineering muscle. This stem is fully CNC machined from a massive chunk of aluminum and features a host of clever designs (like Top Lock Technology™ and Distributed Stress Technology™) to remove stress risers and eliminate rocking caused by floating faceplates. The Havoc 35 stem is available in two-colors (black or blingedout anodized orange).
| Finish: | Black or Orange ANO |
| Weight: | 190 grams |
| Lengths: | 50mm |
| Clamp diameter: | 35mm |
| Material: | Easton CNC EA90 Alloy |
Using a motocross style of clamping, the Havoc Bolt-On stem uses two singular pieces to offer a strong setup.

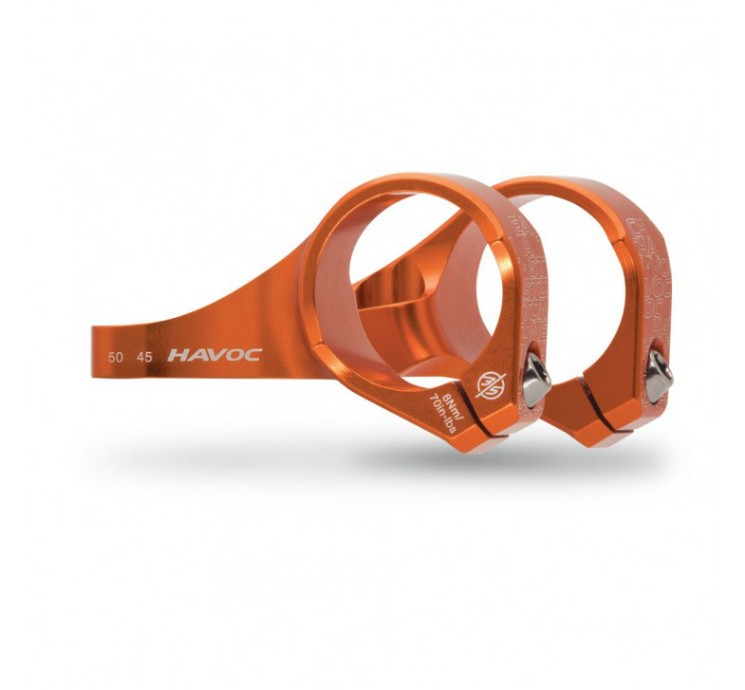

Easton Havoc Bolt-On 35 Stem:
The Havoc 35 Bolt-On is the very best gravity stem money can buy. In addition to looking like jewelry for your DH bike, this stem utilizes Easton’s new Havoc 35 bar/stem clamp diameter. With this stem you can rest assured that there is nothing stronger or stiffer. This stem is fully CNC machined from a massive chunk of EA90 aluminum and is tested to forces well beyond industry standards for both impact and fatigue, so your frame will explode long before your stem is compromised. Not to mention, at little more than 100 grams, this is one of the lightest options available (about as light as our EC90 SL carbon XC stem).
The Havoc 35 Bolt-On is compatible with any Rock Shox Boxxer or Fox 40 fork, and is adaptable to three length settings (45 and 50 millimeters). It features negative 5-millimeters of rise to keep your front end low and fast and is available in two colors—black or anodized orange.
| Finish: | Black or Orange ANO |
| Weight: | 110 grams |
| Lengths: | 2-Position Adjustable 45 + 50mm |
| Clamp diameter: | 35mm |
| Material: | Easton CNC EA90 Alloy |
Is Easton going to set a new trend for downhill and freeride bar diameters? Judging by the specs 35mm has got everything going its way.
