Pivot Launches All-New 170mm-Travel Firebird

18 August 2016  |

Pivot Cycles has just announced the all-new Firebird, a new bike that they are billing as the Holy Grail of long-travel bikes!

The Firebird is the no-compromise, Holy Grail of long travel mountain bikes – both an enduro bike that devours park runs and a technical climber that relishes huge lines and blazing descents. Building on its reputation as the bike for all-day missions on black diamond terrain, the Firebird now features Phoenix DH-inspired long reach measurements combined with a 65-degree head angle to deliver unmatched stability and handling.

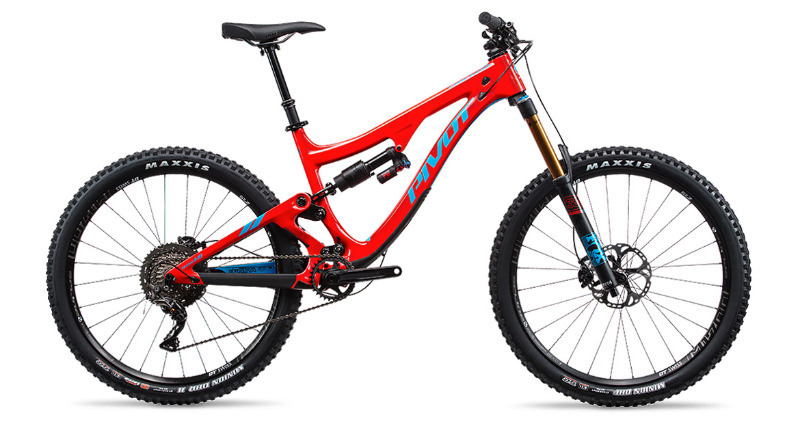

Pivot Firebird

For enduro racers, the tough and light Firebird's peerless climbing traction, descending capability and instant acceleration makes this the perfect choice for the steep courses of the Enduro World Series. For park riders, the Firebird's long front-center and short chainstay combination provides that nimble, snappy feel that encourages bold line choices while staying fully in control at World Cup speeds.

Geometry

Taking a page from the Phoenix DH Carbon's progressive geometry, the Firebird features some of the longest reach measurements in the sport, combined with super-short, 16.95"chainstays. The resulting long front-center keeps the front wheel in contact with the trail on the ups and gives the Firebird a perfectly balanced, highly capable technical climbing ability over rough terrain.

When descending, the Firebird's long and low geometry puts the rider "in" the bike for increased stability at high speeds and on steep technical challenges while the short chainstay measurements provide a maneuverable, dynamic ride that makes it easy to put the bike where you want it.

Pivot Firebird

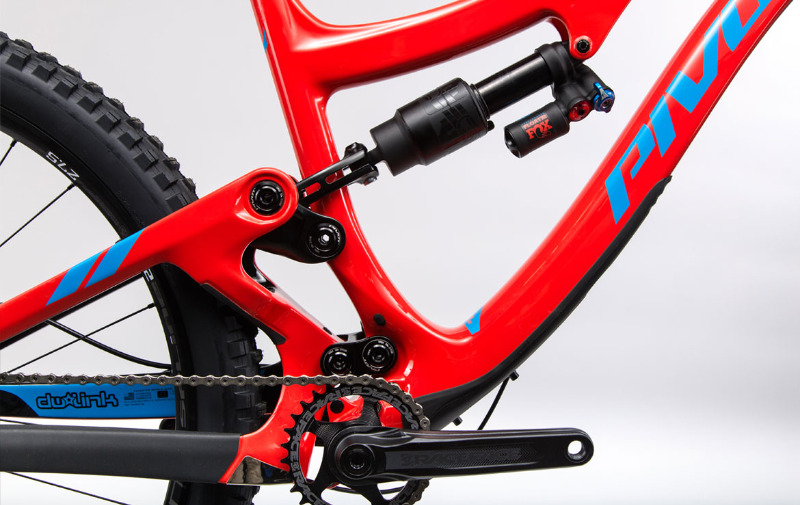

DW-Link

Dave Weagle, the brains behind dw?link® and Chris Cocalis, Pivot's president and founder, collaborate on every Pivot suspension design. For the Firebird Carbon, they have created a bike that uses the best attributes of the dw?link® for the ultimate in downhill and climbing performance. With the dw?link's anti squat and variable wheel travel path, we were able to optimize the Firebird's rearward axle path in the first 1/3rd of the travel to provide incredible square edge bump absorption (similar to our Phoenix DH bike) with pedaling efficiency equal to the Mach 6. This ensures that the new Firebird carbon both descends and pedals better than anything else in the category.

Pivot Firebird

Fox Suspension

The Firebird is spec'd with the class-leading Fox Float X2 factory shock*. This choice is based directly on feedback from our top racers – the Fox Float X2 air shock offers incredible control and a plusher feel allowing riders to go faster with greater confidence. The X2 shock features independent high and low speed compression and rebound adjustments, an EVOL air sleeve for coil shock-like sensitivity, Kashima coating and the X2's new RVS (Rod Valve System) for incredible damping control and an ultra-plush ride. Between the high low speed compression and rebound adjustments, as well as air spring and air volume adjust; the Fox Float X2 is easily the most tunable shock for the entire ranges of rider weights and course conditions.

For riders whose passion is seeking new lines and uncharted adventure, the new climb switch on the Float X2 shock makes the Firebird an Enduro-style rider's best choice for getting up and down the mountain.

To match the Firebird's rear suspension, we've paired it with the newest 170mm Fox 36 Factory Boost fork – ideal for aggressive, balanced handling in advanced terrain.*

* XTR/XT Pro, and XO1 Eagle Pro bikes feature the Float X Performance rear shock, which features hard anodized body and independent low speed compression and rebound adjustments. XT Race builds feature the Float X2 Performance rear shock and Fox 36 Performance Boost fork.

Pivot Firebird

Carbon Design

Long days both up and down the mountain require a strong chassis that is light enough to make climbing fun. The heart of the new Firebird is a uniquely designed Pivot carbon frame with a Phoenix DH-inspired double wishbone rear triangle and ultra-stiff linkage design. With our own hollow core, internal, high compression carbon molding process and the right combination of composite materials and shapes, we are able to deliver a high end frame that meets the same stringent testing requirements for strength and stiffness as our downhill bike at a significantly lower weight, making it possible to build a complete bike below 28 pounds.

All The Right Details

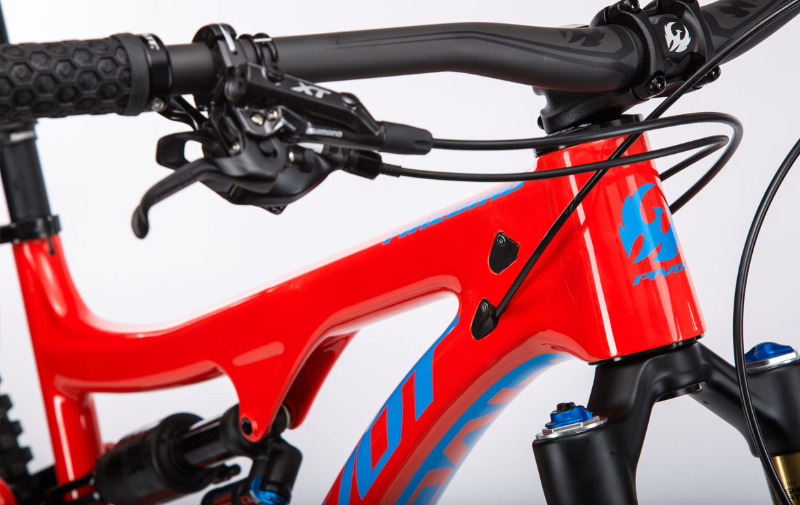

The Firebird features the latest version of the Pivot Cable Port system. This system offers easy, clean internal routing of shifters, brakes and droppers and features large ports for quick and easy routing and service. Housing clamps each entry and exit point keep all your lines 100% secure and quiet, because nobody likes a noisy bike. For those seeking every advantage, the Firebird offers full Di2 electronic shifting integration co-developed in partnership with Shimano.

The Firebird comes all prepped and ready for 1X gearing, but is easily set up for two chainrings via Pivot's ultra-clean, removable front derailleur mount. This precisely engineered mount offers the best shifting performance you can get, utilizing Shimano's new side-swing front derailleur system and is included with every frame.

Other essential details include ultra-quiet, low durometer, rubberized frame protection in all the key locations, 180mm post mount disc brake mounts for easy set up and weight savings, and Enduro Max cartridge bearings throughout. The Firebird is available in four sizes to fit riders from 5'4" to 6'7"+ from S to XL.

Pivot Firebird

Perfect Builds From Pivot

The Firebird complete bike models are designed with high-performance, rugged riding in mind, with both durability and light weight as key considerations. Pivot offers a full range of specification levels to meet your performance requirements, and every build is one we ride ourselves. Visit our complete bike tab for complete details on the many different available for your bike.

We take quality and workmanship seriously at Pivot, and know that the details are what make a great rider experience. Every Pivot Cycles frame undergoes a 28-step assembly and quality control check to ensure that every ride on the Firebird exceeds your expectations.

Firebird Features

  • Full carbon frame featuring leading edge carbon fiber materials and Pivot's proprietary hollow core internal molding technology
  • Phoenix DH-influenced long and low geometry
  • Short 430mm (16.95") chainstays
  • 170mm dw-link™ rear suspension with upper clevis and linkage and double wishbone rear triangle
  • Fox Float Factory X2 rear shock*
  • Features a 170mm Fox 36 Factory fork
  • 27.5 wheel compatible, fits tires up to 2.5" wide
  • Boost™ spacing front and rear
  • Front derailleur compatible with Pivot's stealth E-Type mounting system.
  • 180mm rear post mounts (no adaptor required)
  • Pivot Cable Port system for easy internal routing of shifters, brakes and droppers and full Di2 Integration
  • Internal dropper post compatible
  • Cold forged alloy linkages with Enduro Max Cartridge Bearings
  • New ultra quiet low durometer rubberized frame protection
  • Available in sizes S, M, L, XL for riders between 5'4" and 6'7
