First Look: e*thirteen Extended Range Cog

3 April 2014  |   |   1 Comment

e*thirteen components know that prices seem to be forever rising and costs going up. They know that you've invested in the perfect set-up for your bike but now want to switch to the latest '1x' set-up this season. They are also aware that you don't want to throw away that new clutch rear derailleur you've just purchased and fitted to your bike.

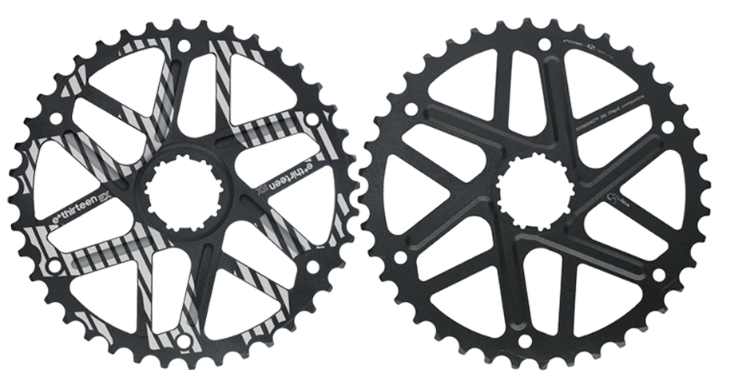

With all this in mind, enter the e*thirteen Extended Range EX Cog designed to give you the ability to upgrade your current set-up whilst still retaining your current 10 speed drive chain components. The EX Cog gives a larger gear range, in line with 1x11 systems at a fraction of the cost and without the need to relegate your current drive chain to the bin.

OK, so here are the basics:

  • It's an add-on cog to extend gear range of 10 spd. Shimano™ and SRAM™ cassettes
  • It comes in 40t and 42t for use with Shimano™ cassettes and a 42t only for use with SRAM™ cassettes
  • Installing your EX Cog is easy. Remove the 15t or 17t cog from your cassette, place the EX Cog on your freehub, then install your existing cassette back in place
  • Each EX Cog is timed and ramped specific to Shimano™ and SRAM™ cassettes
  • The EX Cog comes with a longer steel replacement, B-limit screw for your derailleurs. Your current one won't be long enough to get the best shifting up to the new cog

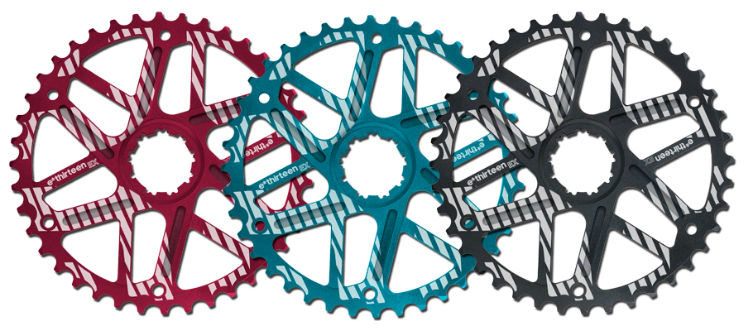

  • Available in Black, Red, and Blue
  • SRP £54.95

Q: Can I use the 40t EX Cog with a 36t cassette?
A: We don't recommend using the 40t EX Cog with a 36t cassette. Shift performance will be compromised as the timing will not be correct.

Q: Can I use the 42t EX Cog on my 34t cassette?
A: The 42t EX Cogs WILL NOT work with 34t max cassettes. A 6 tooth jump is the maximum for good shifts.

Q: I have a short cage derailleur on my bike. Will that work?

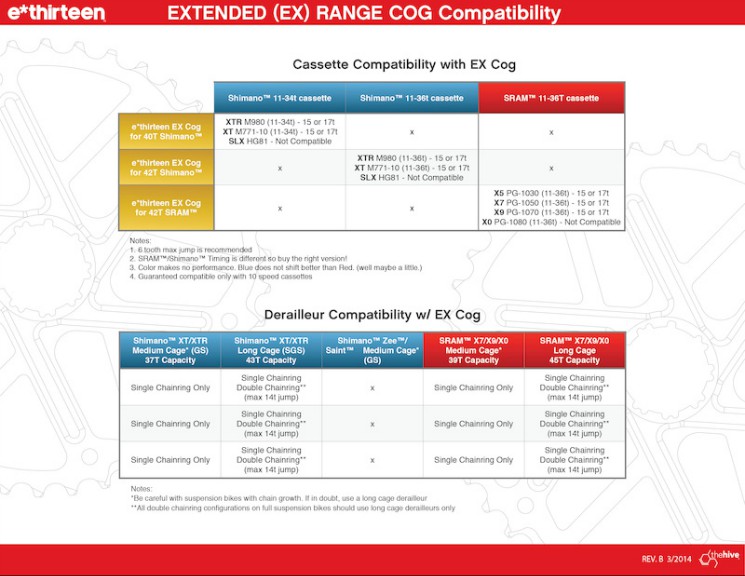

A: We recommend a medium or long cage derailleur. (if you are not sure about max. derailleur capacity, check here to reference our handy compatibility chart.)

Q: Why do you only have a 42t EX Cog for SRAM™ cassettes?
A: The 40t is available only for Shimano™ as SRAM™ is not offering a 34t cassette.

Q: Is it hard to setup the EX cog?
A: It's really not too hard, but you are working at the extreme limits of your rear derailleur. If you have specific questions about the setup and adjustment, we recommend heading to your local bike shop.

Q: I have a really worn drivetrain. Will the EX Cog work ok on my bike?
A: Old drivetrain components could cause poor shifting performance. We recommend a new chain and a new or well-cared for cassette.

Q: What is the extra screw for?
A: It's a replacement B limit screw for your rear derailleur. The longer screw may be needed for proper derailleur set-up. If you are unsure about setting your B limit, refer to our how to guide, or head in to your local bike shop.

Q: Can I run this cog on my 2x system?
A: Indeed you can if you have the proper bits currently in your drivetrain.

1 Comment

hawks said on: 9 April 2014 12:54

Ok so i have the 10s slx 36t cassette with the see rear mech, dies that put me out of the game?
